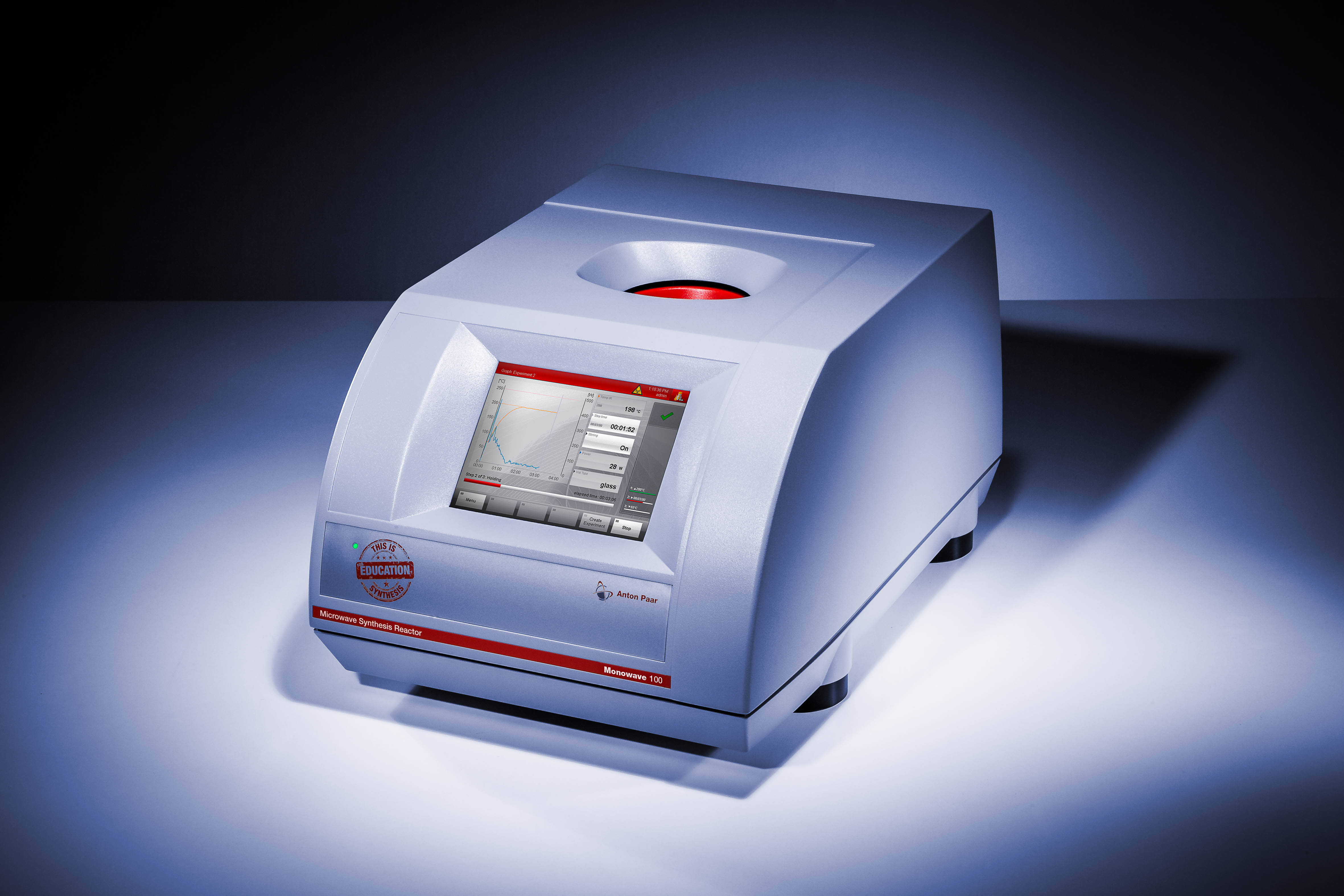

Microwave Synthesis for Education: Monowave 100
All you need to get started with microwave synthesis Monowave 100 is a dedicated microwave synthesis reactor designed to meet the needs of academic research and to serve educational purpose. It is your easily operated all-in-one solution conveniently providing you with well-controlled, reproducible results in minimized reaction times. All parameter control is fully integrated in the instrument; no further sensors need to be attached. Employing the optional silicon carbide vessel instead of standard microwave glass vials allows efficient heating of any content in next to no time.
  1. Features
  2. Specification

 Quality synthesis for a steeper learning curve!

  • Intuitive and simple software for quick programming
  • Safely achieved high temperatures and pressures
  • 500 W unpulsed microwave output power
  • High field density
  • Integrated magnetic stirrer,  IR temperature sensor and pressure control
Specifications
Max. filling volume 6 mL
Max. operation pressure         20 bar (290 psi)
Max. temperature    260 °C
Max. power  500 W
Vial material   Borosilicate glass, silicon carbide
Cap material PEEK
Seal material Teflon-coated silicone
