X-ray fluorescence (XRF) spectrometers

EDXRF for quality control applications

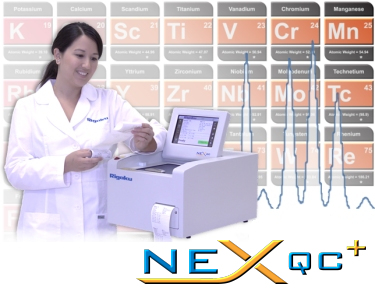

Specifically designed for routine quality control applications, the new Rigaku NEX QC+ features an intuitive "icon-driven" touch screen interface for easy operation and a built-in printer for convenience.

EDXRF with high precision and broad elemental coverage

The shuttered 50kV X-ray tube and Peltier cooled semiconductor detector deliver exceptional short-term repeatability and long-term reproducibility with excellent element peak resolution. This high voltage capability (50 kV), along with multiple automated X-ray tube filters, provides a wide range of applications versatility and low limits-of-detection (LOD).

EDXRF with autosampler, helium and FP options

Options include fundamental parameters, automatic sample changer, sample spinner and helium purge for enhanced light element sensitivity.

· Features

Analyze ¹¹Na to ⁹²U non-destructively
Solids, liquids, alloys, powders and thin films
50kV X-ray tube for wide elemental coverage
SDD detector for superior resolution and sensitivity
Modern smartphone style "icon driven" user interface
Multiple automated tube filters for enhanced sensitivity
Convenient built in thermal printer
Low cost with unmatched performance-to-price ratio
Optinal fundemental parameters

Excitation

50kV X-ray tube
4W max power
6 tube filter positions with shutter

Detection

High performance semiconductor detector
Peltier thermo-electric cooling
Optimum balance of spectral resolution and max count rate

Sample Chamber

Large 190 x 165 x 60 mm sample chamber
Single position 32 mm sample aperture
Single position 40 mm sample aperture
Bulk sample aperture
6-position 32 mm automatic sample changer
5-position 40 mm automatic sample chamber
Single position 32 mm sample spinner
Analysis in air or helium

Environmental Conditions

Ambient temperature 10-35ºC (50-95ºF)
Relative humidity ≤85% non-condensing
Vibration: undetectable by people
Free from corrosive gas, dust and particles

Software & Application Packages

Qualitative and quantitative analysis
Normalization and validation feature
Fundamental parameters
Data export function with LIMS compatibility
User selectable shaping times
Simple flow bar wizard to create new applications
Icon driven graphical user interface

User Interface

Embedded computer
Internal thermal printer
USB & Ethernet connections

Spectrometer Data

Single phase AC 100/220V, 1.4A (50/60 Hz)
Dimensions: 33.1(W) X 43.2(D) X 37.6(H) cm (13 X 17 X 14.8 inch)
Weight: 16 kg (35 lbs)

Options

6-position 32 mm automatic sample changer
5-position 40 mm automatic sample chamber
Single position 32 mm sample spinner
Helium purge
Fundamental parameters
