Autoclave, high pressure

ASTM C151 | ASTM C490

GENERAL DESCRIPTION

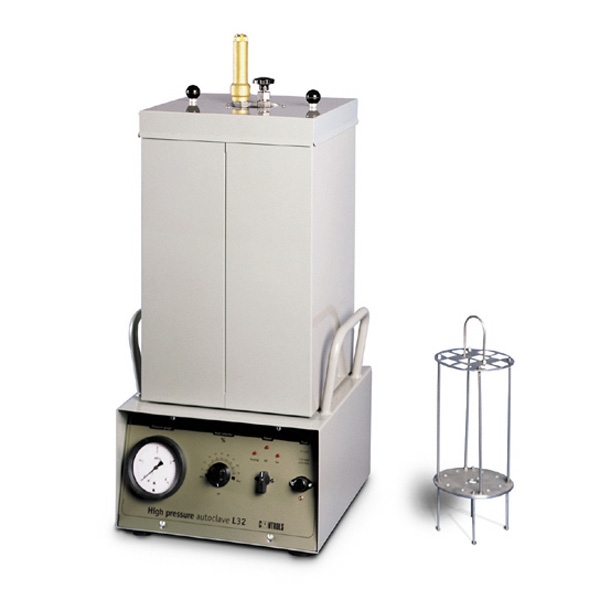

The autoclave consists of a high-pressure steam vessel with internal dimensions 154 mm dia. x 430 mm high to accept a rack for holding 10 specimens obtained with the 62-L0033/B moulds (see accessories). Complete with pressure gauge, pressure regulator, temperature regulator, control switches, safety valve and specimen rack.
Certified conforming to ISPELS procedure.

ORDERING INFORMATION

62-L0032/A
High pressure cement autoclave, 230 V, 50-60 Hz, 1 ph

62-L0032/AZ
High pressure cement autoclave, 110 V, 60 Hz, 1 ph

ACCESSORIES

62-L0033/B
Two gang prism mould 25x25x250 mm complete with contact points. Gauge length 250mm.

SPARES

62-L0033/B2
Spare contact points for 62-L0033/B moulds. Pack of 10.

TECHNICAL SPECIFICATIONS

• Heater: 2600 w

• Overall dimensions: 450x475x1080 mm

• Weight approx.: 55 kg
