STANDARDS: BS 1377:5 / ASTM D2435, D3877, D4546 / AASHTO T216 / NF P94 090-1, P94 091 / UNE 103-405, 103-601, 103-602 / CEN-ISO/TS17892-5
General description and specifications

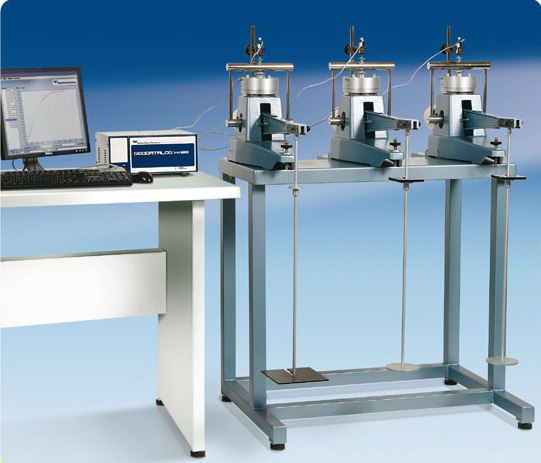

The oedometer consists of a rigid aluminium alloy frame to avoid any distortion under load. The lever arm assembly is supported in precision self-aligning bearings and has three hanger positions: 9:1, 10:1, and 11:1 ratio.
- Max. loading using 11:1 beam ratio: 1848 kg corresponding to 9.061MPa (92.40 kgf/cm2) on 20 cm2 specimen (Ø 50.47 mm)
- Dimensions: 500x200x750 mm (height less hanger x width x length)
- Weight approx.: 21 kg
Consolidationcells
|
Fixed ring Code |
Permeability Code |
Specimen Dia. |
Specimen area |
Specimen height |
|
26-WF0320 |
26-WF0322 |
50.47 mm |
20 cm2 |
20 mm |
|
26-WF0321 |
26-WF0323 |
63.50 mm |
31.67 cm2 |
20 mm |
|
26-WF0325 |
26-WF0327 |
71.40 mm |
40 cm2 |
20 mm |
|
26-WF0326 |
26-WF0328 |
75 mm |
44.16 cm2 |
20 mm |
|
26-WF0335 |
26-WF0337 |
112.80 mm |
100 cm2 |
25 mm |
Spare parts for standard and permeability cells
|
Cell codes |
26-WF0320 26-WF0322 |
26-WF0321 26-WF0323 |
26-WF0325 26-WF0327 |
26-WF0326 26-WF0328 |
26-WF0335 26-WF0337 |
|
Size |
20 cm2 |
31.67 cm2 |
40 cm2 |
44.16 cm2 |
100 cm2 |
|
Upper porous disc |
26-WF0320/4 |
26-WF0321/4 |
26-WF0325/4 |
26-WF0326/4 |
26-WF0335/4 |
|
Lower porous disc |
26-WF0325/10 |
26-WF0326/10 |
26-WF0325/10 |
26-WF0326/10 |
26-WF0335/10 |
|
Cutting ring |
26-WF0320/3 |
26-WF0321/3 |
26-WF0325/3 |
26-WF0326/3 |
26-WF0335/3 |
Accessories
|
Calibration disc |
26-WF0320/9 |
26-WF0321/9 |
26-WF0325/9 |
26-WF0326/9 |
26-WF0335/9 |
