Specification

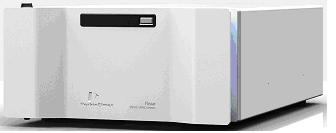

Flexar PDA LC Detector

Flexar FX-PDA UHPLC Detector

CDS control environment

Chromera® and TotalChrom®

Chromera® and TotalChrom®

Detection type

Single beam polychromater

Single beam polychromater

Sources

Simultaneous Deuterium lamp and Tungsten-halogen lamp; pre-focused, no adjustment required on replacement

Simultaneous Deuterium lamp and Tungsten-halogen lamp; pre-focused, no adjustment required on replacement

Number of photodiodes

512

512

Wavelength range

190-700 nm

190-700 nm

Resolution

1.09 nm/diode

1.09 nm/diode

Absorbance range

-0.005 to >2.6 AU

-0.005 to >2.6 AU

Linear dynamic range

<5% deviation @ 1.8 AU

<5% deviation @ 1.8 AU

Wavelength accuracy

±1 nm

±1 nm

Wavelength settability

1 nm

1 nm

Spectral bandwidth

1 to 175 nm

1 to 175 nm

Short-term noise

±0.9 x 10-5 AU peak to peak at 254 and/or 650 nm, 20 nm bandwidth, 2-second response time, slit width 4 nm; effective calculations per ASTM @ 1 mL/min w/ 100% methanol

±0.9 x 10-5 AU peak to peak at 254 and/or 650 nm, 20 nm bandwidth, 2-second response time, slit width 4 nm; effective calculations per ASTM @ 1 mL/min w/ 100% methanol

Drift

0.7 x 10-3 AU/hr

0.7 x 10-3 AU/hr

Flow cell

15 μL, 10 mm

2.4 μL, 6 mm

Output

TCP/IP

TCP/IP

Dimensions (HxWxD)

18.5 x 34 x 53 cm

18.5 x 34 x 53 cm

Weight

15.5 kg

15.5 kg

Electrical requirements

120 to 240 VAC, 50/60 Hz, 195 VA

120 to 240 VAC, 50/60 Hz, 195 VA
