Smart Experiments with Automated Assays Effortless Results using AI
Single-Cell Imaging and Analysis with Ease
User Interface Designed for Data-Rich Microscopy

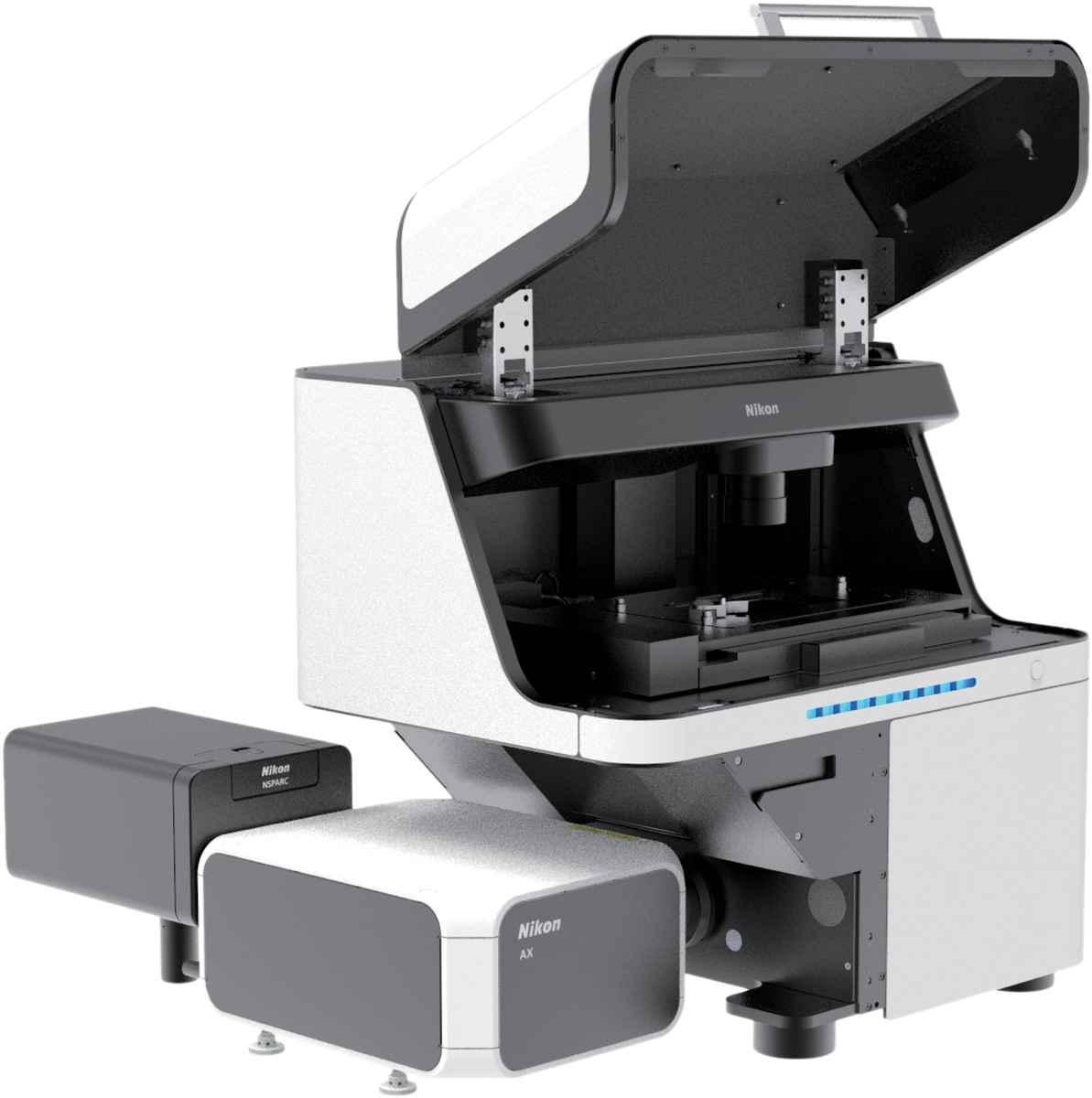

Multi-Role Digital Inverted Microscope
Real time focus correction with Perfect Focus System
Ideal for Automated Imaging and Analysis Observation methods: Brightfield, Epi-fluorescence Optical system: CFI Infinity Optical Syste
Observation Optical System: Inverted image observation FOV 25
Optical path switching: Switching between the built-in camera optical system and the left side port
Built-in camera: Imaging device: 7.8 megapixel monochrome CMOS sensor
Frame rate: Maximum 18 fps
Output pixel number: 2800×2800 pixels (when assay used)
Focusing stroke: About 10 mm,
Focusing speed: Maximum driving speed 2.5 mm/sec
StageStroke: X: ±59 mm, Y: ±39.5 mm
Maximum drive speed About 25 mm/sec
Nosepiece: 6 Objective lens mounting holes
Nosepiece drive method: Motorized
Number of fluorescent filter cubes that can be mounted: 6
Light source used: D-LEDI2 fluoresce LED light source |
||||||||
 |
|
 ..............................
|
 |
