DS Fi-3

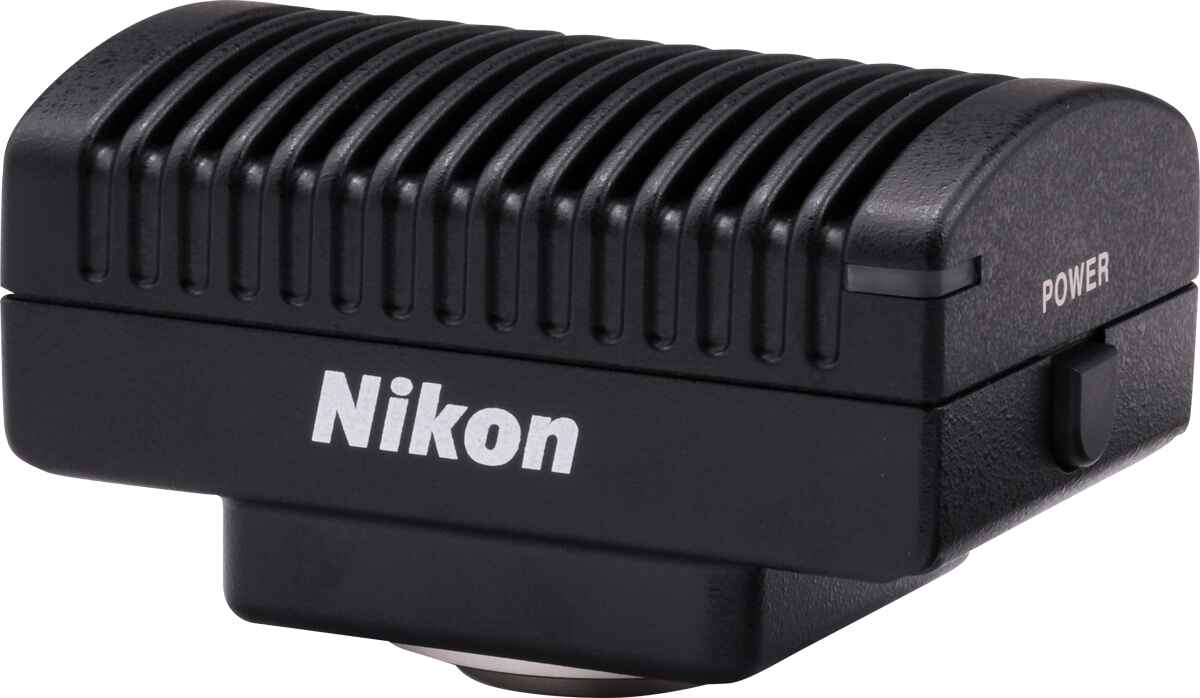

Compact, high-definition, high-speed and high-sensitivity C-mount camera. DS-Fi3 is a high-definition color microscope camera equipped with a 5.9 megapixel CMOS image sensor. Its high-speed data readout, superior color reproduction and high quantum efficiency are optimal for imaging in various observations, such as brightfield, DIC, phase contrast and fluorescence observation.
  1. Features
  2. Specification

 High definition imaging

High sensitivity and low noise
High-speed live display
Excellent color reproducibility
Direct connection to a PC
Different camera control options

 Image sensor: 1/1.8 inch Color CMOS image sensor


Size: 6.91 x 4.92 mm

Recordable pixelsAll pixels: 2880 x 2048

Lens mountC-mount

Live display mode:
All pixels (2880 x 2048): 15 fps
2 vertical and 2 horizontal pixels average (1440 x 1024): 30 fps

Exposure time100µ sec to 30 sec

Exposure controlOne-time automatic, Continuous automatic exposure, and Manual exposure
