-          CO₂ results after only 55 seconds

-          CO₂ measurement based on the patented Multiple Volume Expansion method

-          Intuitive user interface - easy handling in all surroundings

-          Clear sample identification for full traceability of 500 measurement results

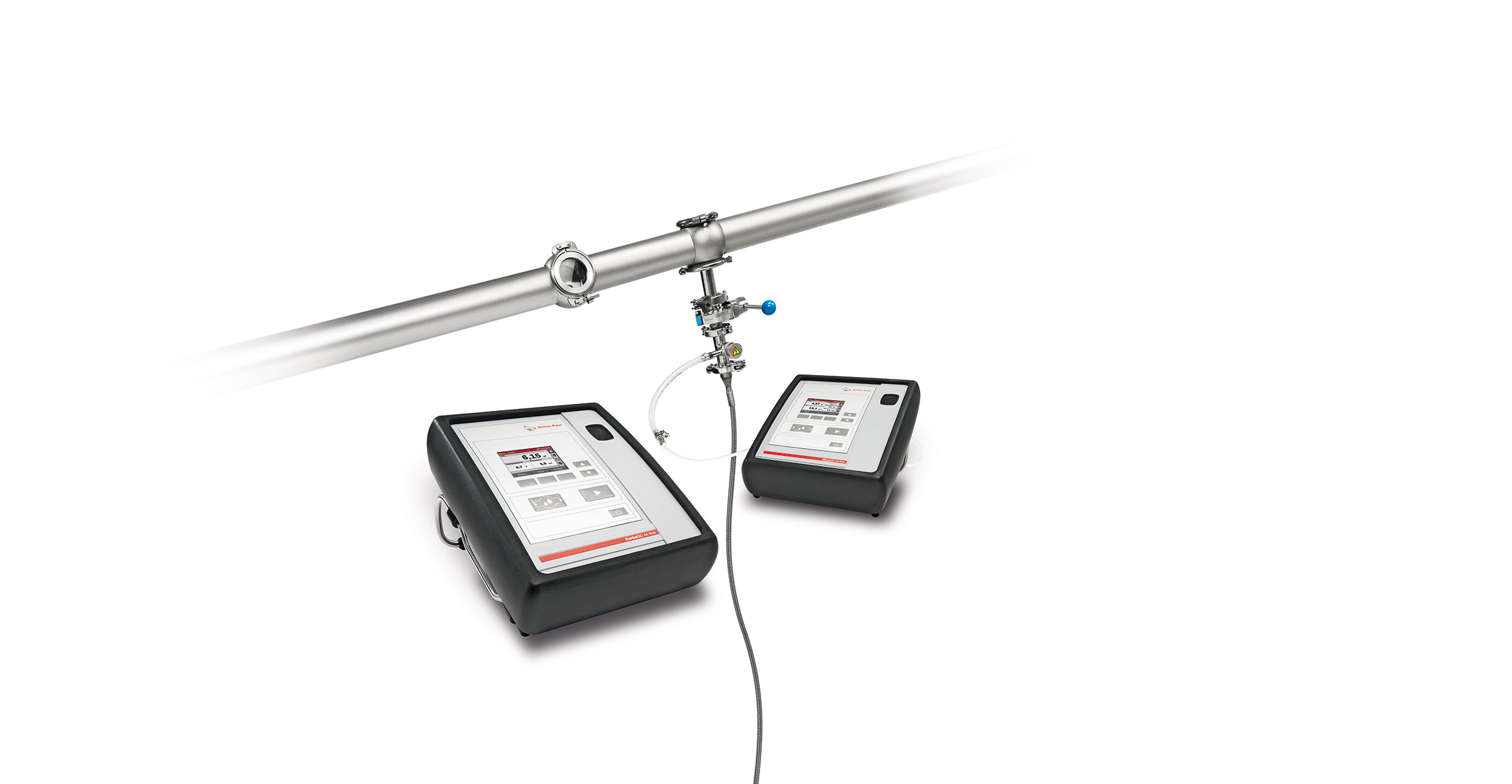

-          Data Logger function: enables continuous CO₂ measurements from the line or tank

-          FillingCheck™: automatically detects filling errors and generates a warning message

-          System Check: guides the operator through recommended periodical checks

   -          Auto-valves: Automatically opens and closes inlet/outlet valves by only one Start or Rinsing press

   -          Rinsing Time: Use the rinsing time setting to adjust the transported sample volume for measuring, it is set between 10 and    300 seconds. After that time, inlet/outlet valves will be closed automatically, no need any press of operator

   -          Sample IDs: You can assign a sample ID to each sample. This function helps to uniquely assign measured data to samples (sample identification) and the measuring point where the sample was taken, etc. You can save up to 19 different sample IDs for full traceability of your results. Sample IDs can have up to 10 characters.

   -          Methods: The instrument is equipped with eight predefined methods and 21 additional custom methods.

Fast and wireless

-          Bluetooth interface for wireless printing

-          USB interface for data transfer to a PC

-          RFID interface for changing measurement settings quickly by reading RFID tags

        Measuring range of CO₂:

-          0 g/L to 12 g/L(0 vol. to 6vol.) at 30 °C

-          0g/L to 20 g/L (0 vol. to 10 vol.) < 15 °C

-          Repeatabilitys.d. of CO₂:  0.04 g/L (0.02 vol.)

-          Resolution of CO₂: g/L

-          Measuring units: g/L, vol., kg/m³

Measuring range of Temperature:

-          -3 °C to +40°C (27°F to 104°F); Accuracy: ± 0.2 °C

Measuring range of Pressure: 0 bar to 10bar absolute (0 psi to 145 psi)

Additionalin formation

-          Sample volume: approx. 150 mL

-          Measuring time per sample: approx. 55 seconds

-          Internal storage: 500 measured results

-          Interfaces:

o    1 x RS-232 for PC and printer

o    1 x USB for PC

o    1 x RFID, 1 x Bluetooth (optional)

-          Protectionclass: IP67

-          Power supply: AC 100 - 240 V, 50/60 Hz,1.5 A;
DC 12 V, 3.,0 A

-          Rechargeable battery type: Li-Ion 11.1 V, 2.25 Ah(optional: Li-Ion 11.25 V, 2.6 Ah)

-          Maximum at-line operation: 10 hours

-          Dimensions (Lx W x H): 262 mm x 209 mm x 176 mm(10.3 in x 8.2 in x 6.9 in)

-    Weight: 2.1 kg (4.6 lbs)
