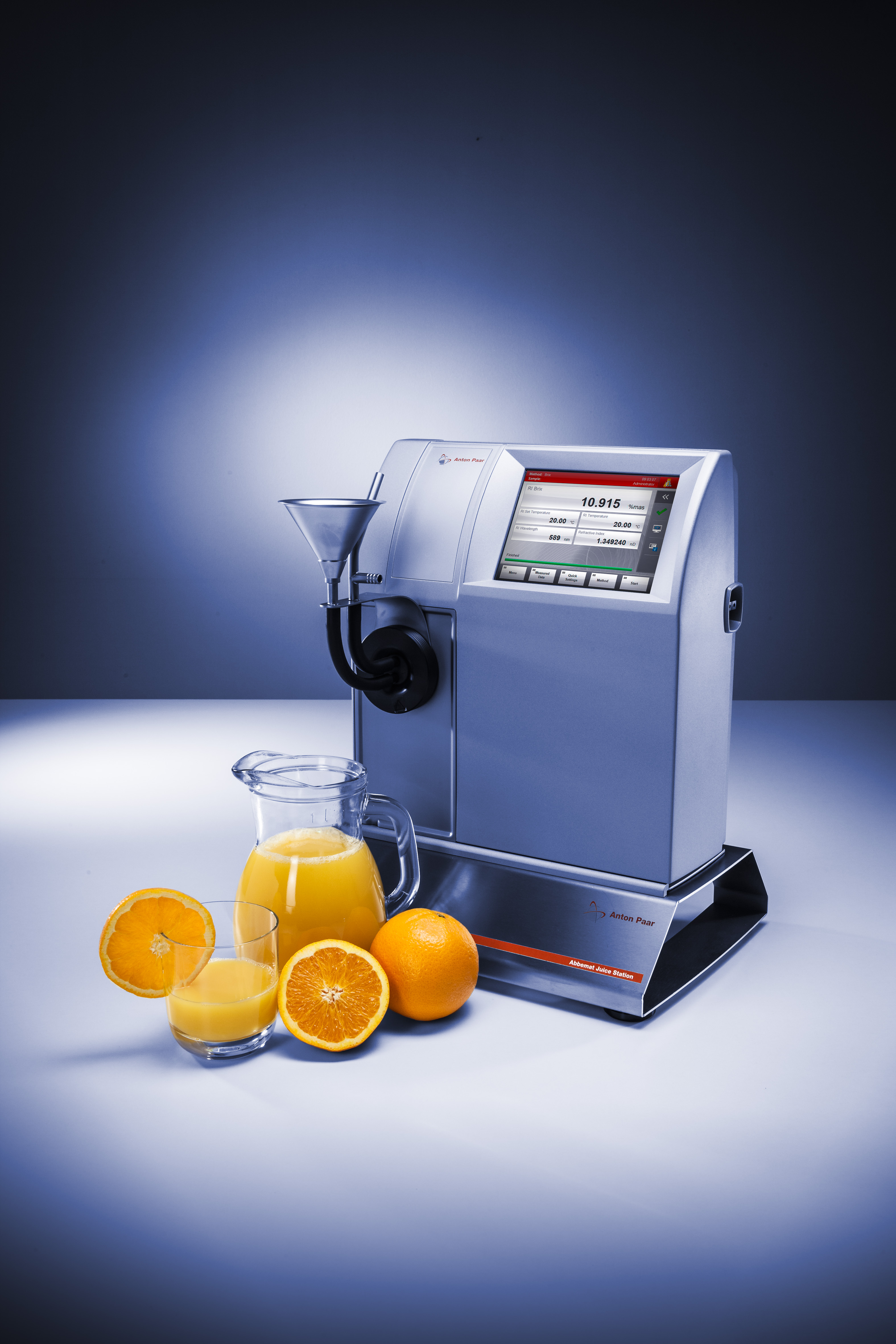

Refratometer and Brix for Juice: Abbemat 550 Juice Station

Refratometer and Brix for Juice: Abbemat 550 Juice Station
	Reliable Brix measurements even with fruit pulp or other particles in your beverage. The vertical setup of the Abbemat Juice Station refractometer avoids sedimentation of particles, e.g. pulp in fruit juices, on the measuring prism. The attached filling funnel allows fast and easy serial analyses, e.g. in quality control. The next sample flushes out the previous one, so that you do not need to clean the measuring prism between samples. An internal temperature control assures the correct measuring temperature. The measured data can be recorded and printed. The Abbemat Juice Station models are easy to operate and the results are independent of the operator. A menu-guided adjustment procedure allows easy adjustment of the instrument. For cleaning, the measuring cell can be easily removed by loosening the supporting ring.

Features
Specification

- The vertical setup of the Abbemat Juice Station refractometer avoids sedimentation of particles, e.g. pulp in fruit juices, on the measuring prism.

- The attached filling funnel allows fast and easy serial analyses, e.g. in quality control. The next sample flushes out the previous one, so that you do not need to clean the measuring prism between samples.

- An internal temperature control assures the correct measuring temperature. The measured data can be recorded and printed.

- The Abbemat Juice Station models are easy to operate and the results are independent of the operator. A menu-guided adjustment procedure allows easy adjustment of the instrument. For cleaning, the measuring cell can be easily removed by loosening the supporting ring.

- Refractive Index (RI)

- Range nD: 1.30 to 1.72

- Resolution nD: ± 0.000001

- Accuracy nD: ± 0.00002

- Range Brix: 0 to 100 %

- Resolution Brix: 0.001 %

- Accuracy Brix: 0.015 %

- Sample/prism temperature control by built-in solid state thermostat (Peltier)

- Temperature range: 10 °C to 85 °C

- Temperature probe accuracy: ± 0.03 °C

- Wavelength 589 nm by LED light source, average lifetime > 100,000 h

- Dimensions W x H x D [mm]: 300 x 145 x 330
