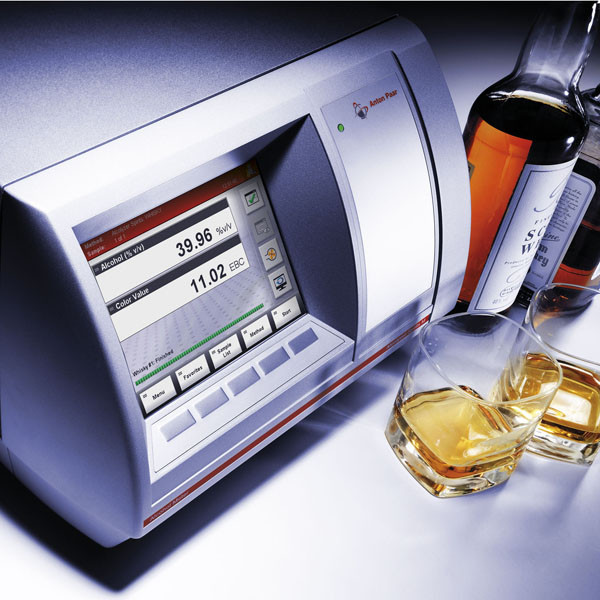

Alcolyzer Spirits M/ME - Alcohol Analysis System
	Analyze spirits efficiently and economically in the laboratory and at the production line using the alcohol analysis system Alcolyzer Spirits M/ME. Alcolyzer Spirits M/ME determines the alcohol content (35 to 65 %vol), color, and pH value of alcoholic beverages. In combination with a density meter, the system additionally determines the total extract of the sample

Features
Specification

Alcohol analysis system with patented NIR measuring method

- Highly accurate measurement of the alcohol content of your spirits in the concentration range 35 to 65 %vol

- Optional pH and color measurement

- For spirits such as whisky, cognac, brandy, vodka, gin, tequila and rum

Time-saving and user-friendly

- Only 3 to 4 minutes from filling to the result

- Accurate, fully automatic thermostatting via an integrated solid-state thermostat

Rapid and easy adjustment

- Adjustment/calibration with water and an alcohol/water solution

- One single adjustment is valid for all your samples

Available methods
Whisky	For spirits with an extract content up to 5 g/L (e.g. whisky, vodka, gin, tequila and rum)
Cognac	For spirits with an extract content up to 20 g/L (e.g. cognac and brandy)
Measuring range
Alcohol	35 to 65 %vol (data can be displayed from 0 to 90 %vol)
pH value (optional)	0 to 14
Color (optional)	0 to 120 EBC
Density (optional)	0 to 3 g/cm³
Turbidity(optional)	0 to 100 EBC
Repeatability - standard deviation
Alcohol
Manual filling	0.03 %vol
Automatic filling	0.01 %vol
pH value (optional)	0.02
Color (optional)	0.1 EBC
Density (optional)	0.00001 g/cm³ (DMA 4500) or 0.000001 g/cm³ (DMA 5000)
Turbidity(optional)	0.02 EBC

|

|

|

|

|
